ZXMN10A07FTA
Manufacturer
Diodes Inc.
Description

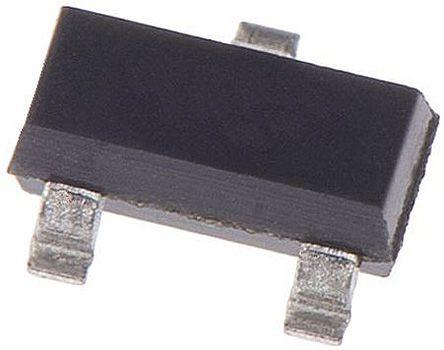

ZXMN10A07F Series 100 V 0.7 Ohm N-Channel Enhancement Mode MOSFET -SOT-23
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Voltage
Voltage Rating (DC)
Weight
Width
Description
SOT-23-3
800 mA
8 A
800 mA
100 V
540 mΩ
100 V
Single
1.5 ns
20 V
1.02 mm
138 pF
Lead Free
3.04 mm
150 °C
150 °C
625 mW
-55 °C
Surface Mount
1
1
3
Cut Tape
625 mW
No
700 mΩ
No SVHC
700 mΩ
1.5 ns
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080
4.1 ns
1.8 ns
100 V
100 V
7.994566 mg
1.4 mm
Product Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Voltage
Voltage Rating (DC)
Weight
Width
Description
SOT-23-3
800 mA
8 A
800 mA
100 V
540 mΩ
100 V
Single
1.5 ns
20 V
1.02 mm
138 pF
Lead Free
3.04 mm
150 °C
150 °C
625 mW
-55 °C
Surface Mount
1
1
3
Cut Tape
625 mW
No
700 mΩ
No SVHC
700 mΩ
1.5 ns
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080
4.1 ns
1.8 ns
100 V
100 V
7.994566 mg
1.4 mm
