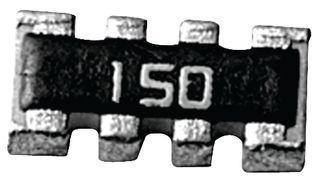

YC124-JR-074K7L
Manufacturer
Yageo
Description
Res Thick Film Array 4.7KOhm 5% 200ppm/C ISOL Epoxy 8-Pin 0804(4 X 0402) Convex SMD T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Circuit Type
Depth
Height
Lead Free
Length
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Contacts
Number of Elements
Number of Pins
Number of Resistors
Number of Terminals
Packaging
Power Dissipation
Power Per Element
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Terminal Pitch
Termination
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Working Voltage
Description
0402
0402
1005
Isolated
1 mm
558.8 µm
Lead Free
2.0066 mm
155 °C
Not
-55 °C
Surface Mount
4
8
4
8
4
8
Cut Tape
62.5 mW
62.5 mW
62.5 mW
No
Unknown
4.7 kΩ
Compliant
200 ppm/°C
500 µm
Convex
5 %
25 V
50 V
25 V
990.6 µm
50 V
