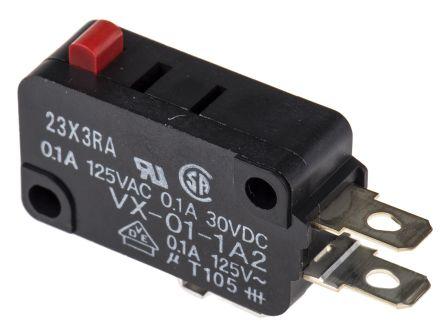

VX-01-1A2
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Pin Plunger 0.1A 125VAC 30VDC 0.25N Screw Mount Solder
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Current Rating
Contact Material
Contact Voltage Rating (AC)
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Pretravel
Radiation Hardening
Ratings
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
100
100 mA
Gold
125 V
100 mA
10.3 mm
304.8 µm
1 Mcycles
15.9 mm
Lead Free
27.8 mm
Production (Last Updated: 7 months ago)
100 mA
80 °C
125 V
30 V
10 Mcycles
-25 °C
Chassis Mount, Screw, Solder
2
250 mN
14.7066 mm
Straight
1.016 mm
1.2 mm
No
IP40
Compliant
8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040
IP40
On-Mom
Solder
SPDT
125 V
30 V
6.2 g
In Stock
Quantity
MOQ : 1
Per Unit Price
₹634.00
Total Price
₹634.00
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹634.00
₹634.00
10
₹430.91
₹4309.06
25
₹430.91
₹10772.66
50
₹430.63
₹21531.53
100
₹394.05
₹39404.90
