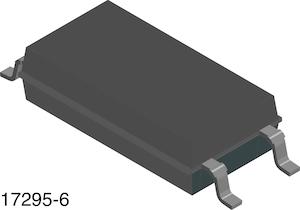

VOL618A-3X001T
Manufacturer
Vishay
Description
Optocoupler Collector-emitter breakdown voltage: 80 V Input forward current: 60 mA
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Transfer Ratio
Fall Time
Forward Current
Forward Voltage
Input Current
Isolation Voltage
Max Collector Current
Max Input Current
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Output Current per Channel
Output Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Rise Time
RoHS
Schedule B
Description
LSOP
400 mV
80 V
200 %
5 µs
60 mA
1.16 V
60 mA
5 kV
50 mA
60 mA
110 °C
80 V
150 mW
-55 °C
Surface Mount
1
1
4
50 mA
80 V
150 mW
No
Unknown
3.5 µs
Compliant
8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000
In Stock
Quantity
MOQ : 2
Per Unit Price
₹54.24
Total Price
₹108.48
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹108.48
₹108.48
10
₹35.92
₹359.24
25
₹35.96
₹898.98
50
₹35.96
₹1797.96
100
₹20.93
₹2093.18
500
₹20.93
₹10465.88
1000
₹18.36
₹18362.87
