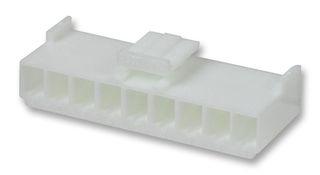

VHR-9N
Manufacturer
JST
Description
Connector Housing, VH Series, 9 Positions, 3.96mm, Crimp, Latch Lock, Natural
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Depth
Fastening Type
Gender
Housing Color
Housing Material
Lead Free
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
REACH SVHC
RoHS
Termination
Width
Wire Gauge (Max)
Wire Gauge (Min)
Description
Natural
Receptacle, Socket
Brass
Tin
13.3 mm
Latch
Receptacle
White
Polyamide
Lead Free
3.96 mm
35.58 mm
10 A
85 °C
250 V
-25 °C
Cable, Free Hanging
9
9
1
Straight
Bulk
3.96 mm
No SVHC
Compliant
Crimp
10.5 mm
22 AWG
16 AWG
In Stock
Quantity
MOQ : 4
Per Unit Price
₹32.90
Total Price
₹131.60
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹131.60
₹131.60
10
₹22.94
₹229.41
25
₹22.92
₹573.09
50
₹22.92
₹1146.18
100
₹17.31
₹1730.83
500
₹19.73
₹9865.67
