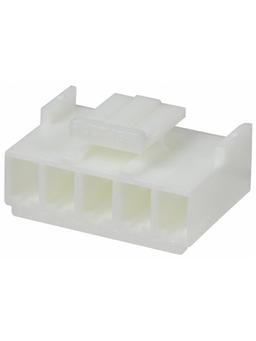

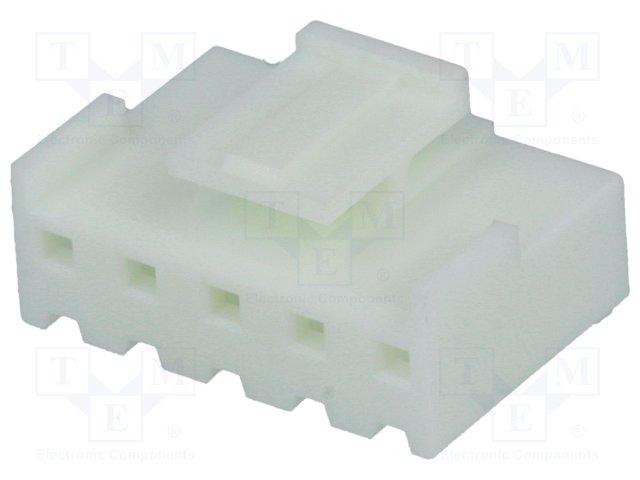

VHR-5N

Manufacturer

JST

Description

Connector Housing, VH Series, 5 Positions, 3.96mm, Crimp, Latch Lock, Natural

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Connector Type

Contact Material

Contact Plating

Current

Current Rating

Depth

Fastening Type

Gender

Height

Housing Color

Housing Material

Lead Free

Lead Pitch

Length

Max Current Rating

Max Operating Temperature

Max Voltage Rating (AC)

Max Voltage Rating (DC)

Min Operating Temperature

Mount

Number of Contacts

Number of Pins

Number of Positions

Number of Rows

Orientation

Packaging

Pitch

REACH SVHC

RoHS

Termination

Voltage

Voltage Rating

Width

Wire Gauge (Max)

Wire Gauge (Min)

Description

Natural

Receptacle, Socket

Bronze, Tin

Tin

10 A

10 A

13.3 mm

Latch

Receptacle

13.3 mm

White

Polyamide

Lead Free

3.96 mm

19.74 mm

10 A

85 °C

250 V

250.25 kV

-25 °C

Cable, Free Hanging

5

5

5

1

Straight

Bulk

3.96 mm

No SVHC

Compliant

Crimp

250 V

250 V

10.5 mm

22 AWG

16 AWG

In Stock

Quantity

MOQ : 6

decrement quantity
increment quantity

Per Unit Price

₹16.89

Total Price

₹101.37

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹101.37

₹101.37

10

₹13.78

₹137.83

25

₹12.66

₹316.56

50

₹11.92

₹595.76

100

₹11.07

₹1107.11

500

₹9.62

₹4809.87

1000

₹9.06

₹9056.00
