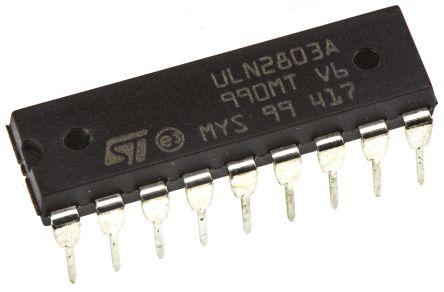

ULN2803A
Manufacturer
STMicroelectronics
Description
Darlington Array; DIP; Eight Darlington Transistors; 50V; 30V; 500MA Collector
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Continuous Collector Current
Current Rating
Emitter Base Voltage (VEBO)
Height
Lead Free
Length
Lifecycle Status
Max Collector Current
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Outputs
Number of Pins
Output Current
Output Voltage
Polarity
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Weight
Width
Description
85 °C
PDIP
50 V
1.1 V
50 V
Tin
500 mA
500 mA
50 V
3.93 mm
Lead Free
23.24 mm
Production (Last Updated: 3 years ago)
500 mA
30 V
150 °C
85 °C
50 V
2.25 W
-20 °C
Through Hole
2
8
8
18
500 mA
50 V
NPN
No
No SVHC
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
250 ns
250 ns
50 V
1.270087 g
7.1 mm
