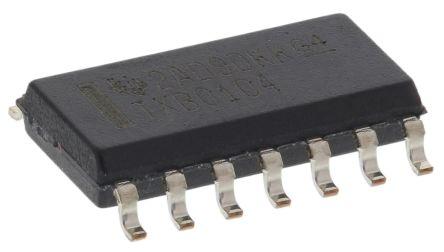

TXB0104D
Manufacturer
Texas Instruments
Description
4-Bit Bidirectional Voltage-Level Shifter with Auto Direction Sensing and +/-15 kV ESD Protect 14-SOIC -40 to 85
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Data Rate
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Channels
Number of Circuits
Number of Inputs
Number of Outputs
Number of Pins
Output Current
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
Rise Time
RoHS
Schedule B
Thickness
Turn-On Delay Time
Weight
Width
Description
85 °C
SOIC
100 Mbps
1.75 mm
-20 µA
Lead Free
8.65 mm
Production (Last Updated: 4 days ago)
Translator
20 µA
ACTIVE (Last Updated: 4 days ago)
150 °C
85 °C
5.5 V
-40 °C
1.2 V
Surface Mount
3.5 µA
4
4
1
1
1
14
20 µA
4 ns
3.5 µA
No
No SVHC
700 ps
Compliant
8542390000
1.58 mm
7.4 ns
129.387224 mg
3.91 mm
