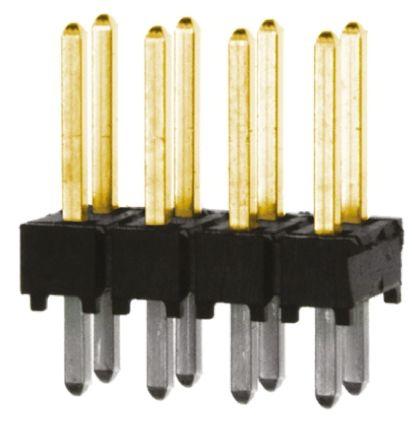

TSW-104-07-L-D
Manufacturer
Samtec
Description
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Bag
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Gender
Housing Color
Housing Material
Lead Free
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Width
Description
Black
Male Pin
Bronze
5.842 mm
Gold
7.6 A
5.08 mm
Male
Black
Polyester
Lead Free
2.54 mm
10.16 mm
Production (Last Updated: 2 months ago)
PRODUCTION (Last Updated: 2 months ago)
7.6 A
125 °C
550 V
-55 °C
Through Hole
8
8
2
Straight
Bulk
2.54 mm
No
No SVHC
Compliant
2.54 mm
Solder
550 V
5.08 mm
