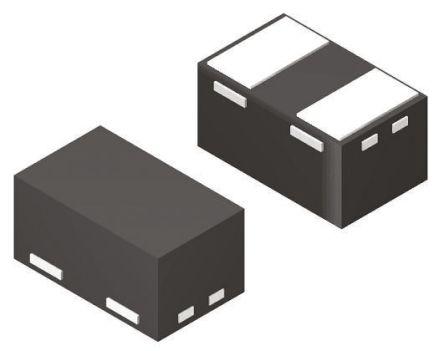

TPD1E10B06DPYR
Manufacturer
Texas Instruments
Description
12-pF, 5.5V, 30-kV ESD protection diode in 0402 and SOD-523 package 2-X1SON -40 to 125
Product Attributes
Type
Ambient Temperature Range High
Breakdown Voltage
Capacitance
Case/Package
Clamping Voltage
Composition
Contact Plating
Direction
Element Configuration
ESD Protection
Height
Interface
Lead Free
Leakage Current
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Reverse Leakage Current
Manufacturer Package Identifier
Min Breakdown Voltage
Min Operating Temperature
Number of Bidirectional Channels
Number of Channels
Number of Pins
Operating Supply Voltage
Packaging
Peak Pulse Current
Peak Pulse Power
Power Line Protection
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Test Current
Thickness
Width
Working Voltage
Description
125 °C
6 V
12 pF
0402
14 V
Zener
Gold
Bidirectional
Single
Yes
450 µm
GPIO
Lead Free
100 nA
600 µm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
125 °C
100 nA
DPY (R-PX1SON-N2)
6 V
-40 °C
1
1
2
5.5 V
Tape and Reel
5 A
90 W
No
No
No SVHC
5.5 V
Compliant
1 mA
370 µm
1 mm
5.5 V
In Stock
Quantity
MOQ : 6
Per Unit Price
₹18.67
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.04
₹112.04
10
₹13.25
₹132.49
25
₹13.23
₹330.78
50
₹13.23
₹661.57
100
₹6.82
₹682.02
500
₹6.83
₹3412.75
1000
₹5.55
₹5545.94
