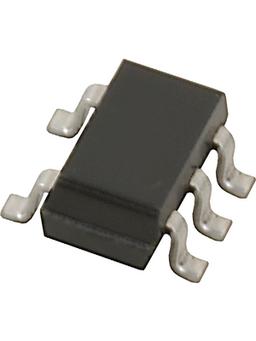

TL431IDBVR
Manufacturer
Texas Instruments
Description
V-Ref Adjustable 2.495V to 36V 100mA 5-Pin SOT-23 T/R
Product Attributes
Type
Case/Package
Cathode Current
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Number of Pins
Output Current
Output Type
Output Voltage
Packaging
Radiation Hardening
REACH SVHC
Reference Type
Reference Voltage
RoHS
Schedule B
Temperature Coefficient
Thickness
Tolerance
Weight
Width
Description
SOT-23
1 mA
1.45 mm
Lead Free
2.9 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
37 V
125 °C
100 mA
36 V
2.495 V
-40 °C
2.495 V
5
100 mA
Adjustable
36 V
Cut Tape
No
No SVHC
Adjustable, Shunt
36 V
Compliant
8542390000
34 ppm/°C
1.2 mm
2.2 %
15.790684 mg
1.6 mm
