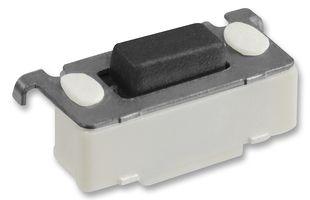

TL3330AF130QG
Manufacturer
E-Switch
Description
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 12VDC 50000Cycles 1.27N SMD T/R
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
Case/Package
Color
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Electrical Life
Height
Illumination Type
Lead Free
Life (Cycles)
Max Operating Temperature
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Orientation
REACH SVHC
RoHS
Switch Function
Switch Travel
Termination
Throw Configuration
Voltage Rating (DC)
Description
1 mm
Nylon, Polyamide
SMD/SMT
Black
50 mA
Silver
Silver
100 mΩ
50 mA
50 kcycles
3.75 mm
Illuminated, Non-Illuminated
Lead Free
50 kcycles
70 °C
12 V
50 kcycles
-30 °C
Surface Mount
2
Right Angle
No SVHC
Compliant
Off-Mom
250 µm
Gull Wing
SPST
12 V
