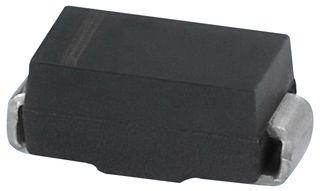

STPS5L60S
Manufacturer
STMicroelectronics
Description
Rectifier Diode Schottky 60V 5A 2-Pin SMC T/R / DIODE SCHOTTKY 60V 5A SMC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Width
Description
5 A
SMC
Single
5 A
520 mV
2.45 mm
Lead Free
7.15 mm
Production (Last Updated: 2 years ago)
150 A
150 °C
150 °C
60 V
220 µA
60 V
150 A
-65 °C
Surface Mount
2
Digi-Reel®
100 A
220 µA
No
No SVHC
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
6.25 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹61.81
Total Price
₹123.62
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹123.62
₹123.62
10
₹44.59
₹445.87
25
₹44.59
₹1114.67
50
₹44.59
₹2229.35
100
₹30.45
₹3045.22
500
₹24.02
₹12010.75
1000
₹16.90
₹16895.30
