STPS30150CG-TR
Manufacturer
STMicroelectronics
Description

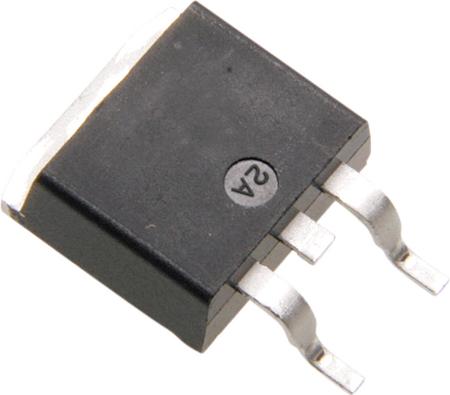

STPS30150C Series 150 V 15 A SMT High Voltage Power Schottky Rectifier - D2PAK
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Lead Free
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
RoHS
Schedule B
Voltage Rating (DC)
Description
15 A
D2PAK
30 A
Common Cathode
30 A
920 mV
Lead Free
Production (Last Updated: 2 years ago)
175 °C
175 °C
150 V
6.5 µA
150 V
220 A
-65 °C
Surface Mount
3
Digi-Reel®
220 A
6.5 µA
No
Compliant
8541100080
150 V
