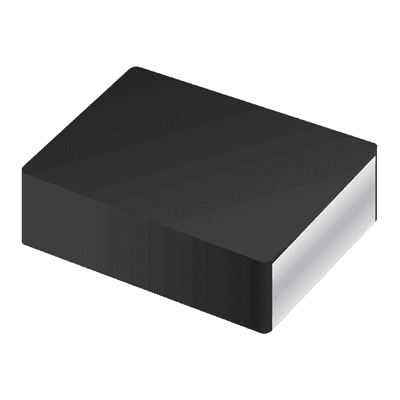

SRP2010-1R0M
Manufacturer
Bourns
Description
Inductor Power Shielded Wirewound 1uH 20% 1MHz Powdered Iron 2.1A 72mOhm DCR 0806 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Shielding
Termination
Test Frequency
Tolerance
Width
Description
0806
0806
2016
Wirewound
Tin
Ferrite
2.6 A
72 mΩ
1.6 mm
1 mm
990.6 µm
1 µH
20 %
2 mm
3.2 A
125 °C
-40 °C
Surface Mount
Tape & Reel (TR)
No SVHC
2.1 A
Compliant
2.9 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
Shielded
SMD/SMT
1 MHz
20 %
1.6002 mm
