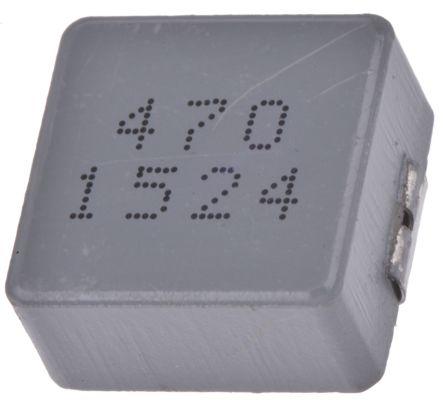

SRP1265A-470M
Manufacturer
Bourns
Description
Inductor Power Shielded Wirewound 47uH 20% 100KHz 20Q-Factor Carbonyl Powder 6.5A 90mOhm DCR Automotive T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Q Factor
Ratings
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Nonstandard
Wirewound
Carbonyl Powder
6.5 A
90 mΩ
12.5 mm
6.2 mm
6.4008 mm
47 µH
20 %
13.5 mm
6.5 A
150 °C
-55 °C
Surface Mount
Tape & Reel (TR)
20
AEC-Q200
No SVHC
6.5 A
Compliant
9.5 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
4 MHz
90 mΩ
Shielded
SMD/SMT
100 kHz
20 %
12.5 mm
