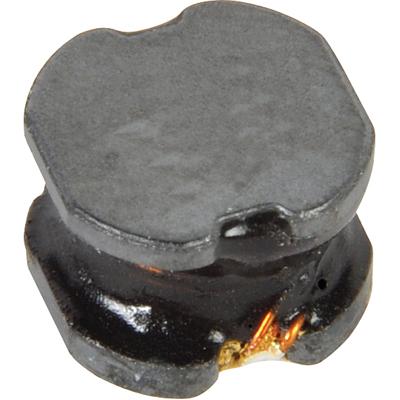

SRN6045-680M
Manufacturer
Bourns
Description
Inductor Power Semi-Shielded Wirewound 68uH 20% 100KHz 13Q-Factor Ferrite 0.9A 0.351Ohm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Q Factor
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
Nonstandard
Wirewound
Ferrite
900 mA
900 mA
351 mΩ
6.2 mm
4.5 mm
4.4958 mm
68 µH
20 %
6 mm
900 mA
125 °C
Not
-40 °C
Surface Mount
2
Cut Tape
13
No SVHC
900 mA
Compliant
1 A
8504500000
6 MHz
351 mΩ
Shielded
SMD/SMT
100 kHz
20 %
785.990529 mg
5.9944 mm
