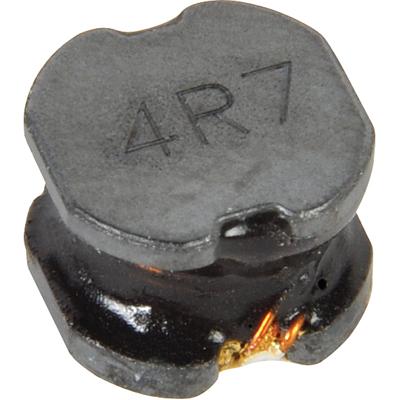

SRN6045-4R7Y
Manufacturer
Bourns
Description
Inductor Power Semi-Shielded Wirewound 4.7uH 30% 100KHz 15Q-Factor Ferrite 3A 37.6mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Material
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
Nonstandard
Wirewound
Ferrite
3 A
3 A
37.6 mΩ
6.2 mm
4.5 mm
4.4958 mm
4.7 µH
30 %
6 mm
Steel
3 A
125 °C
Not
-40 °C
Surface Mount
2
Cut Tape
No SVHC
3 A
Compliant
4 A
8504500000
22 MHz
Shielded
SMD/SMT
100 kHz
30 %
785.990529 mg
6 mm
