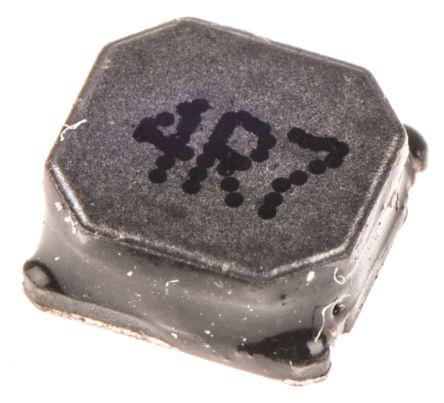

SRN4018-4R7M
Manufacturer
Bourns
Description
Ind Power Semi-Shielded Wirewound 4.7uH 20% 100KHz Ferrite 1.9A 1515 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Material
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Q Factor
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Nonstandard
Wirewound
Ferrite
1.9 A
1.9 A
84 mΩ
4.2 mm
1.8 mm
1.8034 mm
4.7 µH
20 %
4 mm
Steel
1.9 A
120 °C
Not
-25 °C
Surface Mount
2
Cut Tape
9
No
No SVHC
1.9 A
Compliant
2 A
8504500000|8504500000|8504500000|8504500000|8504500000
35 MHz
84 mΩ
Shielded
SMD/SMT
100 kHz
20 %
4 mm
