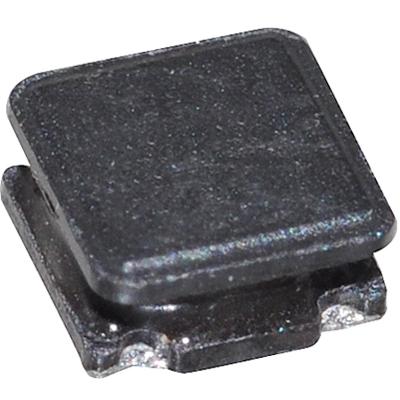

SRN3015-220M
Manufacturer
Bourns
Description
Ind Power Semi-Shielded Wirewound 22uH 20% 1MHz Ferrite 600mA 1212 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Contact Plating
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Number of Circuits
Number of Pins
Number of Terminals
Packaging
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
1212
Compliant
Wirewound
Tin
Ferrite
600 mA
600 mA
622 mΩ
3.1 mm
1.5 mm
1.4986 mm
22 µH
20 %
3.1 mm
Production (Last Updated: 7 months ago)
600 mA
600 mA
125 °C
Not
-40 °C
1
2
2
Tape and Reel
Yes
600 mA
Compliant
580 mA
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
28 MHz
Yes
SMD/SMT
1 MHz
20 %
35.011661 mg
3 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹46.24
Total Price
₹138.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹138.71
₹138.71
10
₹37.26
₹372.57
25
₹33.86
₹846.52
50
₹31.41
₹1570.33
100
₹29.01
₹2900.57
500
₹24.36
₹12182.04
1000
₹22.50
₹22504.76
