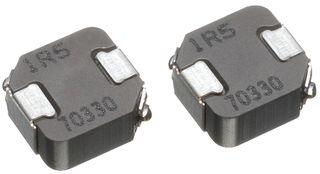

SPM6530T-1R5M100
Manufacturer
TDK
Description
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz Metal 11A 10.67mOhm DCR Blister T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Nonstandard
Wirewound
Metal
11 A
11 A
10.67 mΩ
6.8 mm
3 mm
2.9972 mm
1.5 µH
20 %
7.112 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
1.5 A
125 °C
Not
-40 °C
Surface Mount
2
Digi-Reel®
No
No SVHC
11 A
Compliant
11.5 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
Shielded
SMD/SMT
100 kHz
20 %
6.5024 mm
