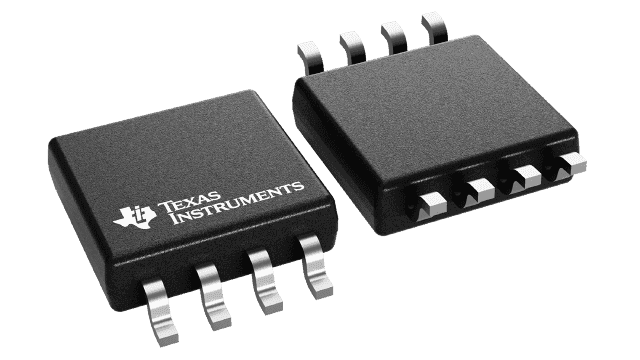

SN74LVC2G32DCUR
Manufacturer
Texas Instruments
Description
2-ch, 2-input 1.65-V to 5.5-V 32-mA drive strength OR gate 8-VSSOP -40 to 125
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Circuits
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Output Current
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Thickness
Turn-On Delay Time
Weight
Width
Description
125 °C
VSSOP
Gold
900 µm
-32 mA
Lead Free
2.3 mm
Production (Last Updated: 4 days ago)
OR
32 mA
ACTIVE (Last Updated: 4 days ago)
150 °C
125 °C
32 mA
5.5 V
-40 °C
1.65 V
Surface Mount
10 µA
2
2
2
2
2
2
1
1
8
32 mA
Cut Tape
3.9 ns
10 µA
No
No SVHC
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
SMD/SMT
850 µm
3.2 ns
9.610488 mg
2 mm
