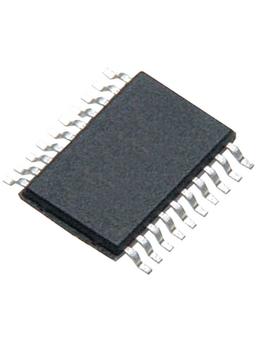

SN74LVC245APWR
Manufacturer
Texas Instruments
Description
Octal Bus Transceiver With 3-State Outputs 20-TSSOP -40 to 125
Product Attributes
Type
Case/Package
Contact Plating
Direction
Frequency
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Gates
Number of Inputs
Number of Outputs
Number of Pins
Number of Transceivers
Packaging
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Thickness
Turn-On Delay Time
Weight
Width
Description
TSSOP
Gold
Bidirectional
100 MHz
1.2 mm
-24 mA
Lead Free
6.5 mm
Production (Last Updated: 4 days ago)
Inverting, Transceiver
24 mA
ACTIVE (Last Updated: 4 days ago)
125 °C
3.6 V
-40 °C
1.65 V
Surface Mount
30 µA
8
8
8
1
1
8
1
8
20
8
Cut Tape
Non-Inverting
6.5 ns
1 µA
No
No SVHC
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
SMD/SMT
1 mm
17 ns
77.989538 mg
4.4 mm
