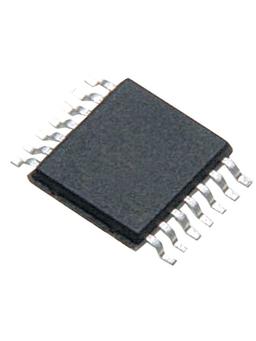

SN74LVC126APWR
Manufacturer
Texas Instruments
Description
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP T/R
Product Attributes
Type
Case/Package
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Packaging
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Turn-On Delay Time
Width
Description
TSSOP
1.2 mm
-24 mA
Lead Free
5 mm
Production (Last Updated: 4 days ago)
Buffer, Inverting
24 mA
ACTIVE (Last Updated: 4 days ago)
125 °C
500 mW
3.6 V
-40 °C
1.65 V
Surface Mount
4
1
4
4
4
4
4
3
4
14
Cut Tape
Non-Inverting
4.5 ns
1 µA
No
No SVHC
Compliant
8542390000
1 mm
14.1 ns
4.4 mm
