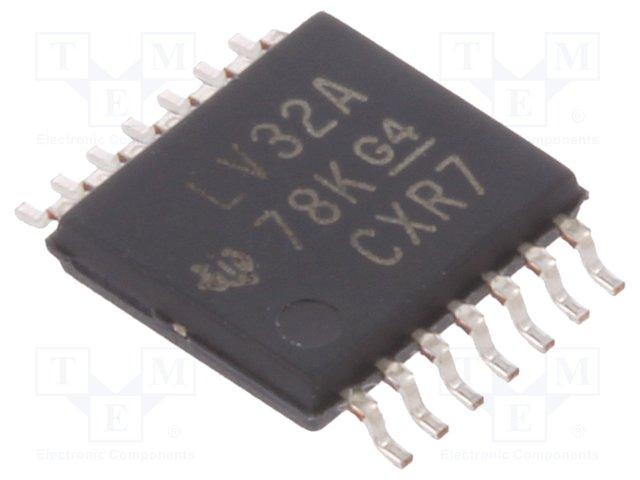

SN74LV32APW
Manufacturer
Texas Instruments
Description
4-ch, 2-input, 2-V to 5.5-V OR gates 14-TSSOP -40 to 125
Product Attributes
Type
Case/Package
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Output Current
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Thickness
Turn-On Delay Time
Weight
Width
Description
TSSOP
1.2 mm
-12 mA
Lead Free
5 mm
Production (Last Updated: 4 days ago)
OR
12 mA
ACTIVE (Last Updated: 4 days ago)
125 °C
12 mA
5.5 V
-40 °C
2 V
Surface Mount
4
4
4
4
4
2
2
1
1
14
12 mA
8.5 ns
20 µA
No
No SVHC
Compliant
1 mm
8.5 ns
57.209338 mg
4.4 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹109.37
Total Price
₹109.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹109.37
₹109.37
10
₹79.23
₹792.28
25
₹79.26
₹1981.58
50
₹79.26
₹3963.16
100
₹58.67
₹5866.94
500
₹58.66
₹29330.26
1000
₹55.67
₹55674.59
