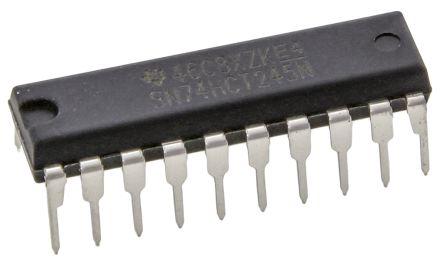

SN74HCT245N
Manufacturer
Texas Instruments
Description
74 Series Transceiver, Non-Inverting 1 4.5V ~ 5.5V DIP-20 RoHS
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Direction
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Inputs
Number of Outputs
Number of Pins
Number of Transceivers
Operating Supply Voltage
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Turn-On Delay Time
Weight
Width
Description
85 °C
PDIP
Gold
Bidirectional
5.08 mm
-6 mA
Lead Free
24.33 mm
Production (Last Updated: 4 days ago)
Inverting, Transceiver
6 mA
ACTIVE (Last Updated: 4 days ago)
150 °C
85 °C
5.5 V
-40 °C
4.5 V
Through Hole
8
8
8
8
1
2
8
20
8
5 V
Non-Inverting
20 ns
8 µA
No
No SVHC
Compliant
8542390000
4.57 mm
74 ns
1.1991 g
6.35 mm
