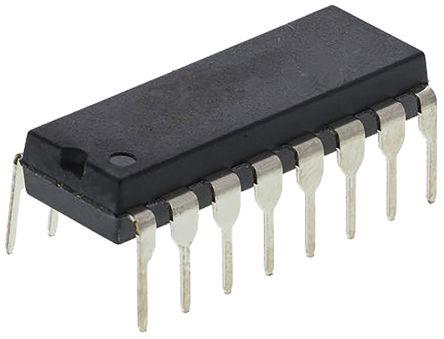

SN74221N
Manufacturer
Texas Instruments
Description
Dual monostable multivibrators with Schmitt-trigger inputs 16-PDIP 0 to 70
Product Attributes
Type
Case/Package
Height
High Level Output Current
Independent Circuits
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Circuits
Number of Elements
Number of Pins
Operating Supply Voltage
Output Current
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
Rise Time
RoHS
Schedule B
Schmitt Trigger Input
Thickness
Turn-On Delay Time
Weight
Width
Description
PDIP
5.08 mm
-800 µA
2
Lead Free
19.3 mm
Production (Last Updated: 4 days ago)
Multivibrator
16 mA
ACTIVE (Last Updated: 4 days ago)
70 °C
5.25 V
0 °C
4.75 V
Through Hole
2
2
2
16
5 V
16 mA
80 ns
26 mA
No
No SVHC
45 ns
Compliant
8542390000
Yes
3.9 mm
80 ns
951.693491 mg
6.35 mm
