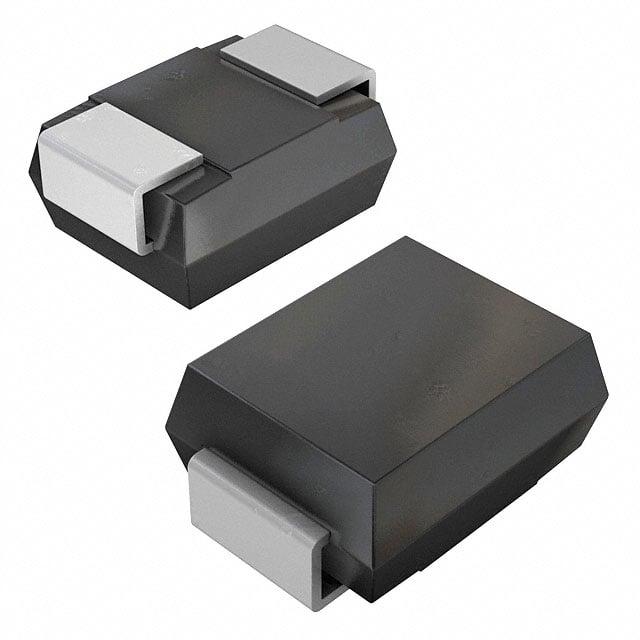

SMBJ24A

Type

Breakdown Voltage

Case/Package

Clamping Voltage

Composition

Direction

Element Configuration

Height

Lead Free

Leakage Current

Length

Lifecycle Status

Max Breakdown Voltage

Max Junction Temperature (Tj)

Max Operating Temperature

Max Power Dissipation

Max Reverse Leakage Current

Max Surge Current

Min Breakdown Voltage

Min Operating Temperature

Mount

Number of Channels

Number of Elements

Number of Pins

Number of Unidirectional Channels

Operating Supply Voltage

Packaging

Peak Pulse Current

Peak Pulse Power

Polarity

Power Line Protection

Power Rating

Radiation Hardening

REACH SVHC

Reverse Breakdown Voltage

Reverse Standoff Voltage

Reverse Voltage

RoHS

Schedule B

Termination

Test Current

Voltage Rating (DC)

Width

Description

29.5 V

SMB

38.9 V

Zener

Unidirectional

Single

2.61 mm

Lead Free

1 µA

4.57 mm

Production (Last Updated: 4 years ago)

29.5 V

150 °C

150 °C

5 W

1 µA

15.5 A

26.7 V

-65 °C

Surface Mount

1

1

2

1

24 V

Tape & Reel

15.5 A

600 W

Unidirectional

No

600 W

No

No SVHC

26.7 V

24 V

24 V

Compliant

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

SMD/SMT

1 mA

24 V

3.94 mm
