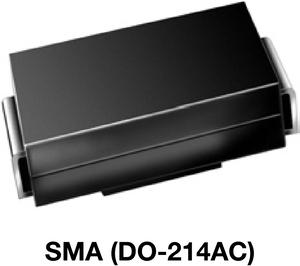

SMAJ26A-E3/61
Manufacturer
Vishay
Description
400 W 26 V Uni Directional Surface Mount Transient Voltage Suppressor Diode
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Case/Package
Clamping Voltage
Contact Plating
Direction
Element Configuration
Height
Lead Free
Leakage Current
Length
Max Breakdown Voltage
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Number of Channels
Number of Elements
Number of Pins
Operating Supply Voltage
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Test Current
Voltage Rating (DC)
Width
Description
28.9 V
SMA
42.1 V
Tin
Unidirectional
Single
2.09 mm
Lead Free
1 µA
4.5 mm
31.9 V
40 A
150 °C
400 W
1 µA
9.5 A
28.9 V
-55 °C
1
1
2
26 V
Tape and Reel
9.5 A
400 W
Unidirectional
400 W
400 W
No
No SVHC
28.9 V
26 V
Compliant
8541100080
SMD/SMT
1 mA
26 V
2.79 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹34.68
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹19.55
₹195.51
25
₹19.55
₹488.79
50
₹19.55
₹977.57
100
₹11.14
₹1114.31
500
₹10.30
₹5151.73
1000
₹8.75
₹8745.28
