SMA6J18A-TR
Manufacturer
STMicroelectronics
Description

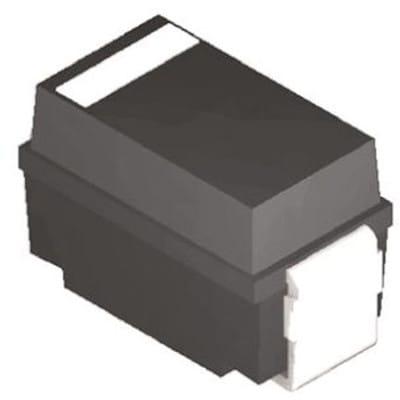

SMA6 Series 600 W 33.2 V Uni Directional Surface Mount TVS Diode - DO-214AC
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Case/Package
Clamping Voltage
Composition
Direction
Element Configuration
Height
Lead Free
Leakage Current
Length
Lifecycle Status
Max Breakdown Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Number of Unidirectional Channels
Operating Supply Voltage
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Dissipation
Power Line Protection
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Test Current
Width
Description
20 V
SMA
28.3 V
Zener
Unidirectional
Single
2.03 mm
Lead Free
200 nA
4.6 mm
Production (Last Updated: 2 years ago)
22.1 V
175 °C
175 °C
240 W
18 V
200 nA
60 A
20 V
-55 °C
Surface Mount
1
1
2
1
18 V
Cut Tape
21.5 A
600 W
Unidirectional
600 W
No
No
No SVHC
20 V
18 V
Compliant
8541100080
SMD/SMT
1 mA
2.9 mm
