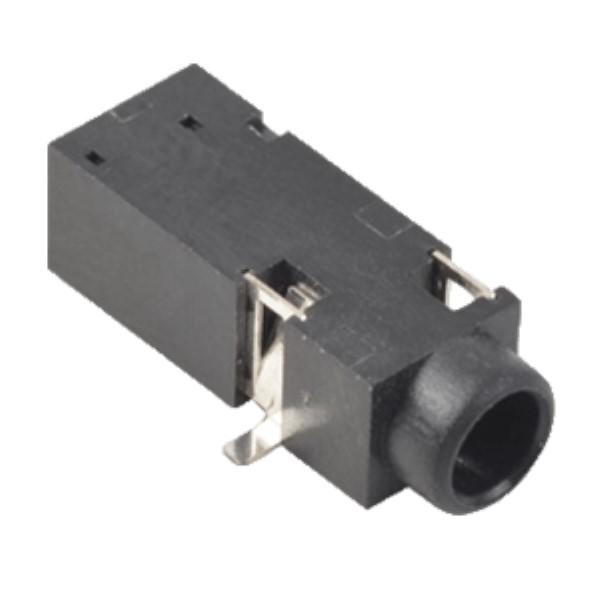

SJ-3523-SMT-TR
Manufacturer
Same Sky
Description
3.5 mm, Stereo, Right Angle, Surface Mount (SMT), Audio Jack Connector
Datasheet
DownloadProduct Attributes
Type
Color
Contact Material
Contact Plating
Current Rating
Gender
Height
Lead Free
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Conductors
Number of Contacts
Number of Ports
Orientation
Packaging
RoHS
Shielding
Termination
Voltage Rating
Description
Black
Silver
Silver
1 A
Female
5.37 mm
Lead Free
Production (Last Updated: 2 years ago)
85 °C
-25 °C
Surface Mount
3
3
1
Horizontal
Tape & Reel (TR)
Compliant
No
Solder
12 V
Product Attributes
Type
Color
Contact Material
Contact Plating
Current Rating
Gender
Height
Lead Free
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Conductors
Number of Contacts
Number of Ports
Orientation
Packaging
RoHS
Shielding
Termination
Voltage Rating
Description
Black
Silver
Silver
1 A
Female
5.37 mm
Lead Free
Production (Last Updated: 2 years ago)
85 °C
-25 °C
Surface Mount
3
3
1
Horizontal
Tape & Reel (TR)
Compliant
No
Solder
12 V
