SI2302CDS-T1-GE3
Manufacturer
Vishay
Description
SI2302CDS-T1-GE3 Vishay Transistor MOSFET N-CH 20V2.6A 3-Pin SOT-23 T/R RoHS
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Lead Free
Length
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Weight
Width
Description

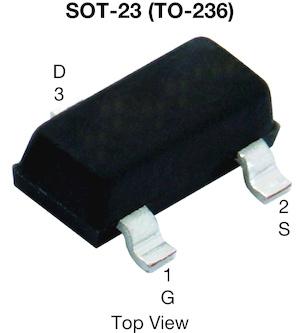

SOT-23-3
2.6 A
20 V
45 mΩ
20 V
Single
7 ns
8 V
1.12 mm
Lead Free
3.04 mm
150 °C
150 °C
710 mW
-55 °C
Surface Mount
1
1
3
Cut Tape
710 mW
No
57 mΩ
Unknown
57 mΩ
7 ns
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
850 mV
30 ns
8 ns
1.437803 g
1.4 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹52.46
Total Price
₹104.93
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.93
₹104.93
10
₹33.49
₹334.91
25
₹33.49
₹837.28
50
₹28.44
₹1422.03
100
₹23.38
₹2337.95
500
₹20.28
₹10138.25
1000
₹17.98
₹17982.29
