SFH 309 FA
Manufacturer
Osram Opto
Description

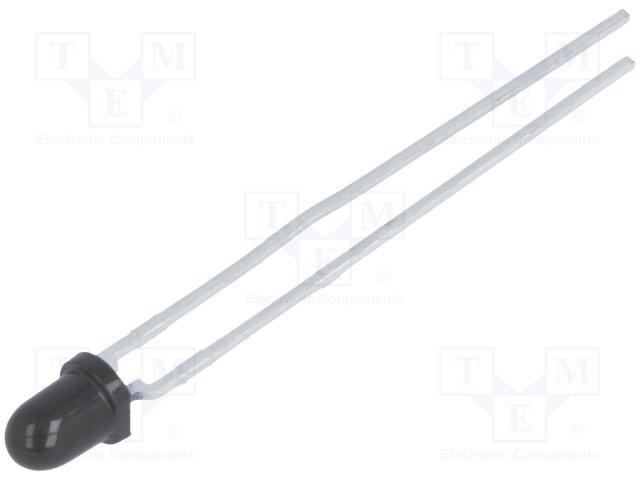

Opto SFH 309 FA 24 deg IR Phototransistor, Through Hole 2-Pin 3mm (T-1) package
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Dark Current
Fall Time
Height
Length
Lens Style
Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Orientation
Polarity
Power Consumption
Power Dissipation
Radiation Hardening
Rise Time
RoHS
Schedule B
Viewing Angle
Wavelength
Width
Description
T
35 V
200 mV
35 V
200 nA
7 µs
4.9 mm
3.8 mm
Domed
Production (Last Updated: 4 years ago)
35 V
15 mA
100 °C
165 mW
-40 °C
Through Hole
1
1
2
Top View
NPN
165 mW
165 mW
No
7 µs
Compliant
8541407080, 8541407080|8541407080|8541407080|8541407080|8541407080
24 °
900 nm
3.8 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹57.80
Total Price
₹115.60
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹115.60
₹115.60
10
₹34.95
₹349.46
25
₹34.91
₹872.75
50
₹34.91
₹1745.50
100
₹18.65
₹1864.65
500
₹18.65
₹9324.15
1000
₹16.94
₹16935.70
