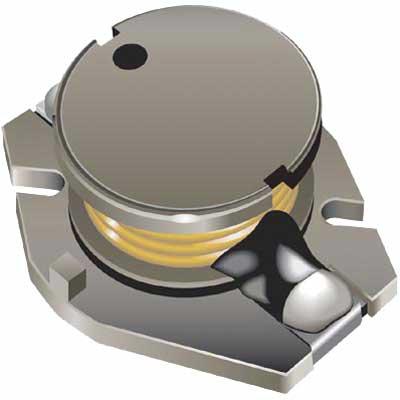

SDR1806-331KL
Manufacturer
Bourns
Description
Ind Power Wirewound 330uH 10% 100KHz 18Q-Factor Ferrite 1A T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Lead Pitch
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Nonstandard
Compliant
Wirewound
Ferrite
1 A
1 A
580 mΩ
14.3 mm
6.6 mm
6.9088 mm
330 µH
10 %
Lead Free
12.7 mm
18.3 mm
Production (Last Updated: 7 months ago)
1 A
1 A
125 °C
Not
-40 °C
Surface Mount
1
2
2
18
No
Yes
580 MΩ
1 A
Compliant
1.8 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
3.5 MHz
No
SMD/SMT
100 kHz
10 %
14 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹118.26
Total Price
₹118.26
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹118.26
₹118.26
10
₹77.45
₹774.49
25
₹77.43
₹1935.79
50
₹77.40
₹3869.80
100
₹64.85
₹6484.94
500
₹53.97
₹26983.66
1000
₹57.34
₹57340.06
