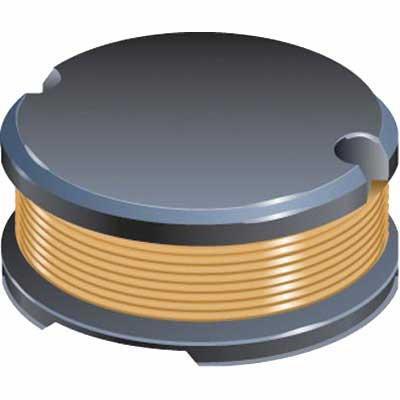

SDR1006-331KL
Manufacturer
Bourns
Description
Inductor Power Wirewound 330uH 10% 1KHz 12Q-Factor Ferrite 520mA 1.15Ohm DCR T/R
Datasheet
DownloadProduct Attributes
Type
China RoHS
Coil Resistance
Composition
Contact Plating
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Compliant
1.15 Ω
Wirewound
Tin
Ferrite
520 mA
520 mA
1.15 Ω
9.8 mm
5.8 mm
5.7912 mm
330 µH
10 %
9.8044 mm
Production (Last Updated: 7 months ago)
520 mA
520 mA
125 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
12
No
Yes
1.15 Ω
520 mA
Compliant
850 mA
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
3.2 MHz
No
SMD/SMT
1 kHz
10 %
9.8 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹84.47
Total Price
₹168.95
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹168.95
₹168.95
10
₹60.55
₹605.54
25
₹59.90
₹1497.41
50
₹55.50
₹2775.19
100
₹51.42
₹5142.24
500
₹46.18
₹23091.63
1000
₹32.69
₹32685.21
