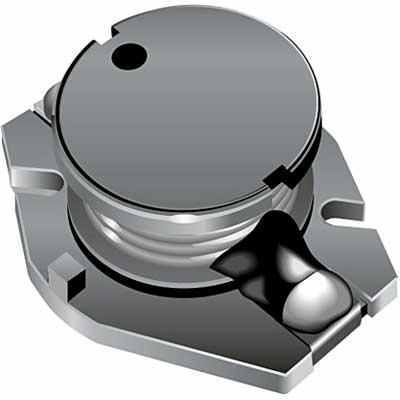

SDR1005-680KL
Manufacturer
Bourns
Description
Inductor Power Wirewound 68uH 10% 1KHz 24Q-Factor Ferrite 1.2A 240mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Contact Plating
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Lead Pitch
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Q Factor
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1005
Compliant
Wirewound
Copper, Tin
Ferrite
1.2 A
1.2 A
240 mΩ
10.2 mm
5 mm
5.0038 mm
68 µH
10 %
Lead Free
7.6 mm
12.7 mm
Production (Last Updated: 7 months ago)
1.2 A
1.2 A
125 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
25
Yes
240 MΩ
1.2 A
Compliant
1.4 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
11 MHz
No
SMD/SMT
1 kHz
10 %
10 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹54.24
Total Price
₹108.48
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹108.48
₹108.48
10
₹48.37
₹483.73
25
₹48.32
₹1207.98
50
₹48.32
₹2415.96
100
₹42.45
₹4245.04
500
₹42.45
₹21225.20
1000
₹42.20
₹42204.10
