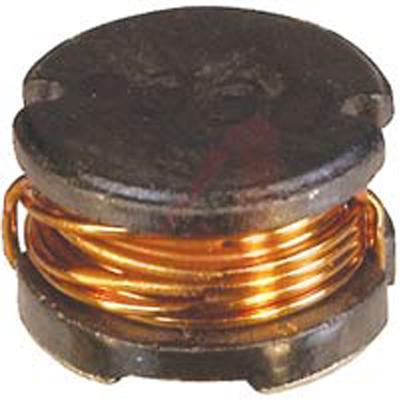

SDR0805-151KL
Manufacturer
Bourns
Description
Inductor Power Wirewound 150uH 10% 1KHz 12Q-Factor Ferrite 580mA 680mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Coil Resistance
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
3131
Compliant
680 mΩ
Wirewound
Ferrite
580 mA
580 mA
680 mΩ
7.8 mm
5.3 mm
5.3086 mm
150 µH
10 %
7.7978 mm
Production (Last Updated: 7 months ago)
580 mA
580 mA
125 °C
Not
-40 °C
Surface Mount
1
2
2
12
No
Yes
680 MΩ
580 mA
Compliant
850 mA
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
6 MHz
No
SMD/SMT
796 kHz
10 %
7.8 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹71.14
Total Price
₹142.27
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹142.27
₹142.27
10
₹51.48
₹514.85
25
₹49.94
₹1248.44
50
₹46.26
₹2312.81
100
₹42.90
₹4289.50
500
₹35.91
₹17954.73
1000
₹24.53
₹24531.25
