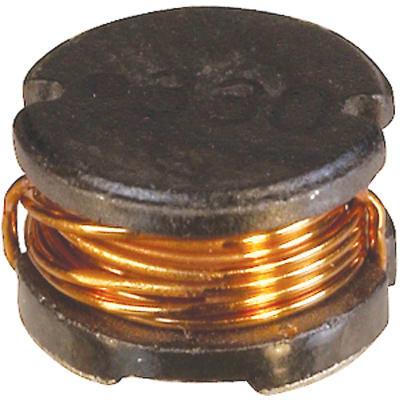

SDR0805-100ML
Manufacturer
Bourns
Description
Inductor Power Wirewound 10uH 20% 1KHz 25Q-Factor Ferrite 2.3A 70mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
China RoHS
Coil Resistance
Composition
Contact Plating
Core Material
DC Current
DC Resistance (DCR)
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Q Factor
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
3131
0805
2012
Compliant
70 mΩ
Wirewound
Tin
Ferrite
2.3 A
70 mΩ
7.8 mm
5.3 mm
5.3086 mm
10 µH
20 %
7.7978 mm
Production (Last Updated: 7 months ago)
2.3 A
2.3 A
125 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
25
No
Yes
2.3 A
Compliant
3.2 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
22 MHz
No
SMD/SMT
2.52 MHz
20 %
7.8 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹52.02
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹42.59
₹425.93
25
₹42.65
₹1066.15
50
₹37.62
₹1880.77
100
₹33.12
₹3311.74
500
₹31.80
₹15898.98
1000
₹27.42
₹27419.88
