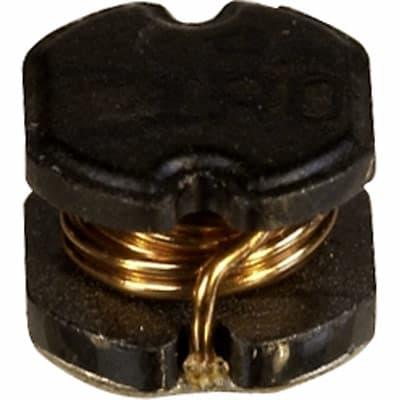

SDR0403-1R0ML
Manufacturer
Bourns
Description
Ind Power Wirewound 1uH 20% 1KHz 28Q-Factor Ferrite 3.8A T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Nonstandard
Wirewound
Ferrite
3.8 A
3.8 A
33 mΩ
4.3 mm
4.5 mm
3.2 mm
3.2004 mm
1 µH
20 %
4.8 mm
3.8 A
125 °C
Not
-40 °C
Surface Mount
2
Tape & Reel
28
No
No SVHC
33 mΩ
3.8 A
Compliant
5.5 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
150 MHz
Unshielded
SMD/SMT
1 kHz
20 %
3.9878 mm
