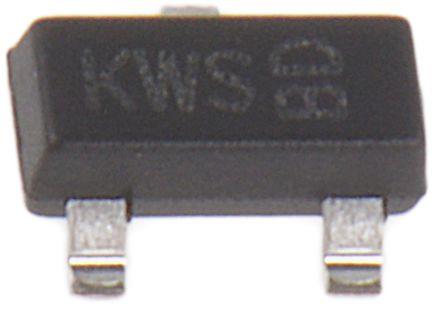

SDM40E20LC-7
Manufacturer
Diodes Inc.
Description
SDM40E20LC Series 20 V 400 mA Dual SMT Schottky Barrier Diode - SOT-23
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
Reverse Voltage
RoHS
Schedule B
Weight
Width
Description
400 mA
120 pF
SOT-23
Tin
Common Cathode
400 mA
430 mV
1.1 mm
Lead Free
3 mm
2 A
125 °C
125 °C
20 V
20 V
-65 °C
Surface Mount
3
2 A
250 µA
225 mW
300 mW
No
20 V
Compliant
8541100070
7.994566 mg
1.4 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹51.57
Total Price
₹103.15
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.15
₹103.15
10
₹32.47
₹324.69
25
₹32.47
₹811.74
50
₹30.61
₹1530.53
100
₹27.67
₹2767.19
500
₹20.99
₹10496.12
1000
₹18.84
₹18837.70
