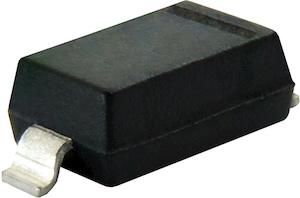

SD103AW-E3-18
Manufacturer
Vishay
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.35A, 40V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Recovery Time
RoHS
Schedule B
Weight
Width
Description
Single
350 mA
600 mV
1.2 mm
Lead Free
2.85 mm
2 A
125 °C
400 mW
40 V
40 V
-55 °C
Surface Mount
2
Cut Tape (CT)
2 A
5 µA
No
Unknown
10 ns
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
10.290877 mg
1.7 mm
