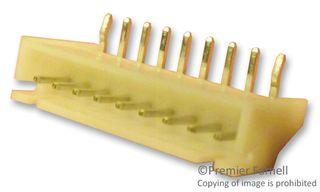

S9B-XH-A (LF)(SN)
Manufacturer
JST
Description
Conn Shrouded Header (4 Sides) HDR 9 POS 2.5mm Solder RA Side Entry Thru-Hole Box
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Contact Resistance
Current Rating
Gender
Insulation Resistance
Lead Free
Lead Pitch
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Termination
Voltage Rating
Voltage Rating (AC)
Wire/Cable Gauge
Description
Natural
Male Pin
Brass
Tin
10 mΩ
3 A
Male
1 GΩ
Lead Free
2.5 mm
85 °C
-25 °C
Through Hole
9
9
1
Right Angle
2.4892 mm
No SVHC
Compliant
Press-Fit
250 V
250 V
22 AWG
In Stock
Quantity
MOQ : 3
Per Unit Price
₹38.24
Total Price
₹114.71
Ships in 7-10 days from Bengaluru
