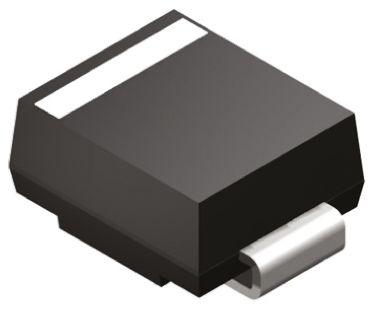

S3JB-13-F
Manufacturer
Diodes Inc.
Description
DIODE GEN PURP 600V 3A SMB / Rectifier Diode Switching 600V 3A 2-Pin SMB T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
Reverse Voltage (DC)
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
3 A
40 pF
SMB
3 A
Single
3 A
1.15 V
2.42 mm
Lead Free
4.57 mm
150 °C
600 V
600 V
100 A
-65 °C
Stud, Surface Mount
2
3 A
Cut Tape
100 A
10 µA
Standard
No
600 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
SMD/SMT
600 V
92.986436 mg
3.94 mm
