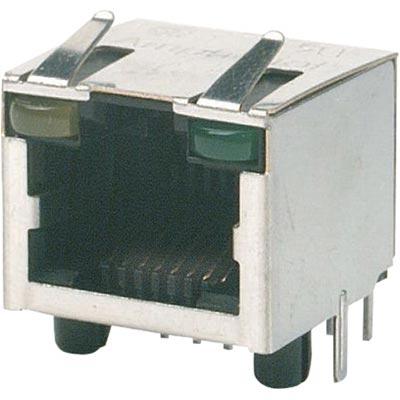

RJHSE5080
Manufacturer
Amphenol ICC / FCI
Description
Jack Modular Connector 8p8c (RJ45, Ethernet) 90 Angle (Right) Unshielded -
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Direction
Flammability Rating
Gender
Height
Housing Material
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Positions Loaded
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Shielding
Termination
Voltage Rating
Voltage Rating (DC)
Description
Black
RJ45
Bronze, Gold, Nickel, Tin
Gold
20 mΩ
1.5 A
14.99 mm
Up
UL94 V-0
Female
13.589 mm
Thermoplastic
Lead Free
15.75 mm
1.5 A
85 °C
125 V
-55 °C
Panel, Through Hole
8
8
1
8
8
1
Right Angle
2.03 mm
No
Unknown
Compliant
8536695050, 8536695050|8536695050, 8536695050|8536695050|8536695050, 8536695050|8536695050|8536695050|8536695050
Unshielded
Solder
125 V
125 V
