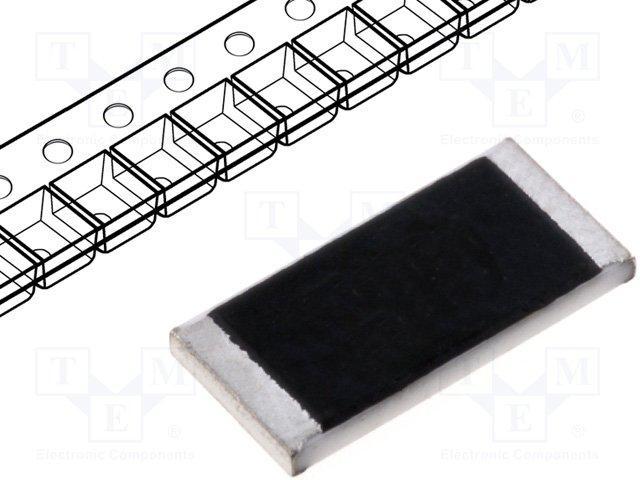

RC2512JK-071RL
Manufacturer
Yageo
Description
SMD Chip Resistor, 1 Ohm, 5%, 1 W, 2512 [6332 Metric], Thick Film, General Purpose
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Number of Pins
Number of Terminations
Power Rating
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Description
2512
2512
6432
Thick Film
Lead, Tin
3.1 mm
Moisture Resistant
660.4 µm
Lead Free
6.35 mm
155 °C
1 W
Not
-55 °C
2
2
1 W
Unknown
1 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
200 ppm/°C
SMD/SMT
5 %
200 V
200 V
200 V
