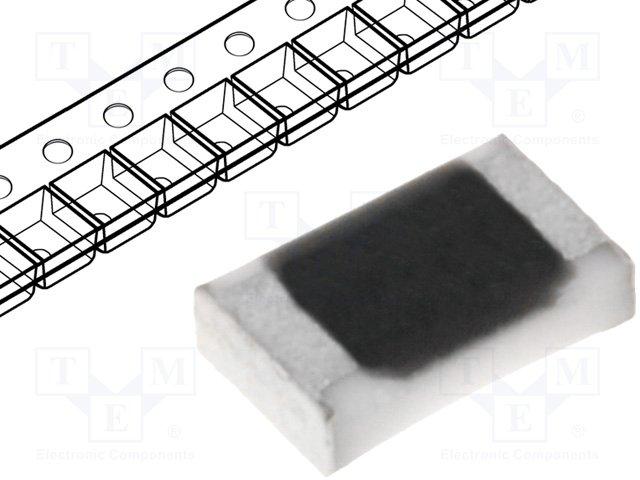

RC0805FR-078R45L
Manufacturer
Yageo
Description
Res Thick Film 0805 8.45 Ohm 1% 1/8W 200ppm/C Molded SMD SMD Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Radiation Hardening
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0805
0805
2012
Thick Film
Tin
Moisture Resistant
500 µm
Lead Free
2.0066 mm
155 °C
125 mW
-55 °C
2
Cut Tape (CT)
125 mW
No
8.45 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
200 ppm/°C
SMD/SMT
1 %
150 V
150 V
1.2446 mm
Product Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Radiation Hardening
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0805
0805
2012
Thick Film
Tin
Moisture Resistant
500 µm
Lead Free
2.0066 mm
155 °C
125 mW
-55 °C
2
Cut Tape (CT)
125 mW
No
8.45 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
200 ppm/°C
SMD/SMT
1 %
150 V
150 V
1.2446 mm
