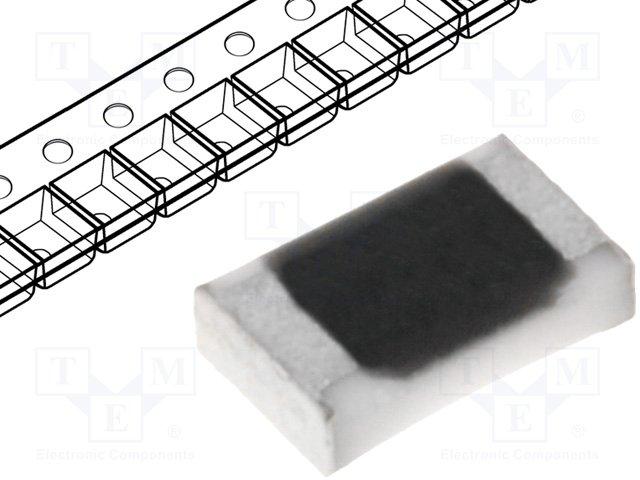

RC0805FR-07845RL
Manufacturer
Yageo
Description
Res Thick Film 0805 845 Ohm 1% 1/8W 100ppm/C Molded SMD SMD Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Radiation Hardening
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0805
0805
2012
Thick Film
Tin
1.25 mm
Moisture Resistant
500 µm
Lead Free
2 mm
155 °C
125 mW
Not
-55 °C
2
Cut Tape (CT)
125 mW
No
845 Ω
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
1 %
150 V
150 V
1.2446 mm
