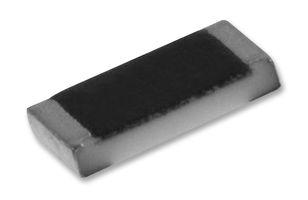

RC0805FR-07240KL
Manufacturer
Yageo
Description
Res Thick Film 0805 240K Ohm 1% 0.125W(1/8W) 100ppm/C Pad SMD T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminations
Packaging
Power Rating
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0805
0805
2012
Thick Film
1.25 mm
Moisture Resistant
500 µm
Lead Free
2.0066 mm
155 °C
125 mW
Not
-55 °C
Surface Mount
2
Tape & Reel
125 mW
240 kΩ
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
1 %
150 V
150 V
1.2446 mm
