RC0603JR-073ML
Manufacturer
Yageo
Description

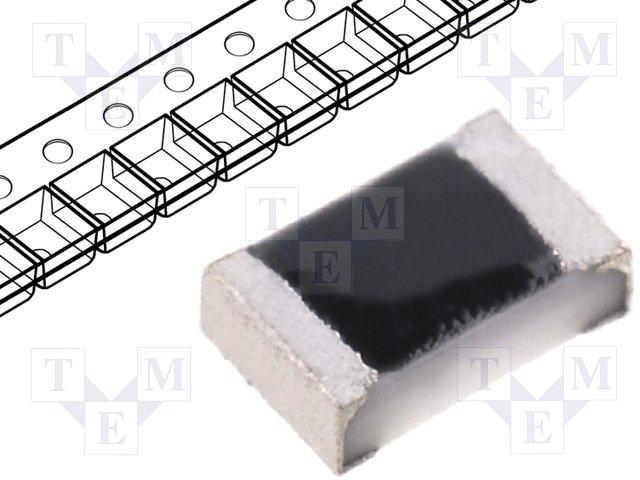

Res Thick Film 0603 3M Ohm 5% 1/10W 100ppm/C Molded SMD Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Resistance
RoHS
Schedule B
Temperature Coefficient
Tolerance
Voltage Rating (DC)
Width
Working Voltage
Description
0603
0603
1608
Thick Film
Tin
800 µm
Moisture Resistant
558.8 µm
Lead Free
1.6002 mm
155 °C
100 mW
Not
-55 °C
2
Cut Tape (CT)
100 mW
3 MΩ
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
100 ppm/°C
5 %
50 V
787.4 µm
75 V
