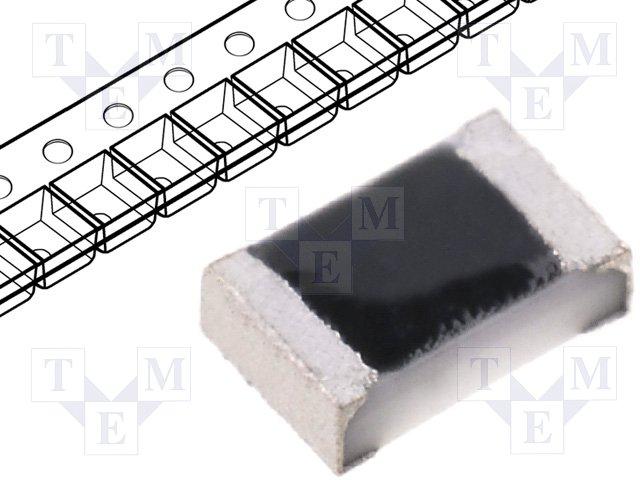

RC0603FR-071R5L
Manufacturer
Yageo
Description
Res Thick Film 0603 1.5 Ohm 1% 0.1W(1/10W) 200ppm/C Pad SMD T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Pins
Number of Terminations
Packaging
Power Rating
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
0603
0603
1608
Thick Film
800 µm
Moisture Resistant
500 µm
Lead Free
1.6002 mm
155 °C
100 mW
-55 °C
2
2
Tape & Reel
100 mW
No SVHC
1.5 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|85
200 ppm/°C
SMD/SMT
1 %
50 V
50 V
50 V
787.4 µm
